01
The core diesel configurationCAT C7.1 diesel
PHANTOM 770 Standard
A 205 kW CAT-powered PHANTOM for operators who need the full interchangeable-shaft platform with the core diesel configuration.
- Power
- 205 kW
- Weight
- 20 t
- Torque
- 2 × 129,000 Nm
MOBILE TWIN-SHAFT SHREDDER
WERT PHANTOM 770
A mobile twin-shaft shredder platform for assessed bulky waste, commercial waste and construction & demolition (C&D) waste, with three drive configurations and interchangeable shafts.
ONE PLATFORM
Configured around the material.
The PHANTOM combines a tracked chassis, tilting hopper, twin-shaft chamber, adjustable screen system and height-adjustable discharge conveyor. Its commercial value comes from changing the process configuration when the material changes.
- Feed hopperTilts up to 90° for loading and access.
- Twin shaftsSlow-running interchangeable configurations.
- Drive systemStandard, Plus or Hyperion power package.
- Screen basketControls recirculation and permitted discharge.
- Overband magnetOptional hydraulic height adjustment.
- Discharge conveyorStepless height adjustment to the current manufacturer-stated 3,800 mm discharge height.
Current specification. The functional source illustration may retain an earlier conveyor annotation. Use the current 3,800 mm manufacturer-stated discharge height shown in the HTML specification and final quotation.
THREE CONFIGURATIONS
Compare the power system, not just the badge.
All three variants share the core shaft geometry and stated torque. The operating case determines which drive configuration deserves a material trial.
02
Higher installed diesel powerCAT C9.3 diesel
PHANTOM 770 Plus
The 310 kW CAT diesel configuration for applications whose verified operating case benefits from greater installed engine power.
- Power
- 310 kW
- Weight
- 20 t
- Torque
- 2 × 129,000 Nm
03
Electric primary shredding powerElectric + diesel travel
PHANTOM 770 Hyperion
A 250 kW electric primary drive with an 18.4 kW HATZ diesel travel system for sites evaluating an electrically powered processing configuration.
- Power
- 250 kW + 18.4 kW
- Weight
- 21 t
- Torque
- 2 × 129,000 Nm
RAPID SHAFT CHANGE
Change the working geometry. Keep the platform.
Different material streams place different demands on draw-in, cutting action and output. The PHANTOM is designed to change complete shaft configurations and pair them with relevant counter tools and screens.
- Star, combination, hammer and metal shafts
- Reversible or rotatable hammer tooling
- Synchronous or asynchronous configurations
- Service-friendly chamber access
MATERIAL APPLICATIONS
Different feeds. Different configuration questions.
Use the application pages to connect material condition, likely shaft families, screen or counter-tool choices and a representative assessment.
01Hammer shaft
Construction & demolition waste
Process assessed construction & demolition (C&D) waste—including mixed debris, concrete, reinforced concrete and stone—with hammer shafts, controlled feed and the required screen system.
≈ 180–220 tonnes per hourmanufacturer-stated average
Explore application →
02Star shaft
Waste wood & timber
Process pallets, waste timber and selected bulky wood with shaft geometry chosen for draw-in behaviour, output definition and the contamination profile.
≈ 35–42 tonnes per hourmanufacturer-stated average
Explore application →
03Star shaft
Green waste & rootstocks
Open up fibrous green waste and irregular rootstocks with a configuration designed for draw-in, changing moisture and embedded soil or stone.
≈ 25–35 tonnes per hourmanufacturer-stated average
Explore application →
04Star shaft
Bulky & commercial waste
Reduce assessed bulky waste, commercial waste and variable municipal waste streams on an interchangeable-shaft platform that can be reconfigured around the feed.
≈ 18–25 tonnes per hourmanufacturer-stated average
Explore application →
05Star shaft
Tyres & rubber
Grip and reduce suitable tyre and rubber streams using shaft tooling selected around elasticity, steel content and the required downstream fraction.
≈ 13–18 tonnes per hourmanufacturer-stated average
Explore application →06Metal shaft
Light scrap & metals
Reduce selected light scrap, profiles and metal-bearing materials with a metal-shaft configuration and a tightly controlled feed assessment.
Explore application →
07Star shaft
Paper & plastics
Prepare paper, plastics and selected mixed materials with shafts chosen for controlled draw-in, tearing and the downstream sorting process.
≈ 12–19 tonnes per hourmanufacturer-stated average
Explore application →SHAFT SELECTOR
Choose the cutting action before the badge.
Star, combination, hammer, metal and specialist shaft systems change how material is drawn in, fractured and recirculated.
01
Star Shaft
A versatile draw-in configuration for waste wood, rootstocks, tyres, commercial waste, paper, mixed waste, sandwich panels and plastics.
Technical detail →
02
Combination Shaft
A configuration for wood, waste, tyres, green waste, rootstocks and paper where a more defined final output may be required.
Technical detail →
03
Hammer Shaft
A mineral-duty configuration for reinforced concrete, concrete, construction debris, stone and selected mineral material.
Technical detail →
04
Metal Shaft
Purpose-selected tooling for light scrap, concrete railway sleepers, window profiles, sandwich profiles and other assessed metal-bearing material.
Technical detail →
05
Wood & Waste Shafts
New and replacement shaft systems for waste wood, green waste, rootstocks, household waste, commercial waste, light scrap and paper.
Technical detail →AVERAGE STATED THROUGHPUT
Useful benchmarks—with the qualification visible.
These are current manufacturer-stated averages, not guarantees or a substitute for a representative material assessment.
| Material | Average stated range |
|---|---|
 Construction debris | approximately 180–220 tonnes per hour |
 Waste wood | approximately 35–42 tonnes per hour |
 Green waste | approximately 25–35 tonnes per hour |
 Commercial waste | approximately 18–25 tonnes per hour |
 Rubber | approximately 13–18 tonnes per hour |
 Rootstocks | approximately 22–30 tonnes per hour |
 Paper | approximately 12–19 tonnes per hour |
Performance qualification. Performance figures are manufacturer-stated averages and are not guaranteed. Actual throughput will vary according to material, shaft configuration, screen-basket settings, material feed and operating conditions.
STANDARD & OPTIONAL
Build the working configuration.
The current 2026 brochure separates included equipment from selectable options. Final quoted equipment governs.
Standard equipment 6 items
- Water-spraying system
- Hopper extension
- Replaceable wear plates
- Reversing fan
- Remote control
- Hot-dip galvanised discharge conveyor
Optional equipment 6 items
- Hydraulically height-adjustable magnet
- GSM module for remote maintenance
- Track pads
- Winter package
- Multiple shaft configurations
- Multiple breaker-bar configurations
TECHNICAL DIMENSIONS
A common mobile platform.
The formal quotation confirms the final transport and equipment configuration. The values shown are from the current 2026 English technical data.
| Shaft dimensions | 1,500 × 650 mm |
|---|---|
| Discharge conveyor width | 1,000 mm |
| Stated discharge height | 3,800 mm |
| Transport length | 10,200 mm |
| Transport width | 2,500 mm |
| Transport height | 2,900 mm |
| Standard / Plus total weight | 20 tonnes |
| Hyperion total weight | 21 tonnes |
OFFICIAL IMAGE GALLERY

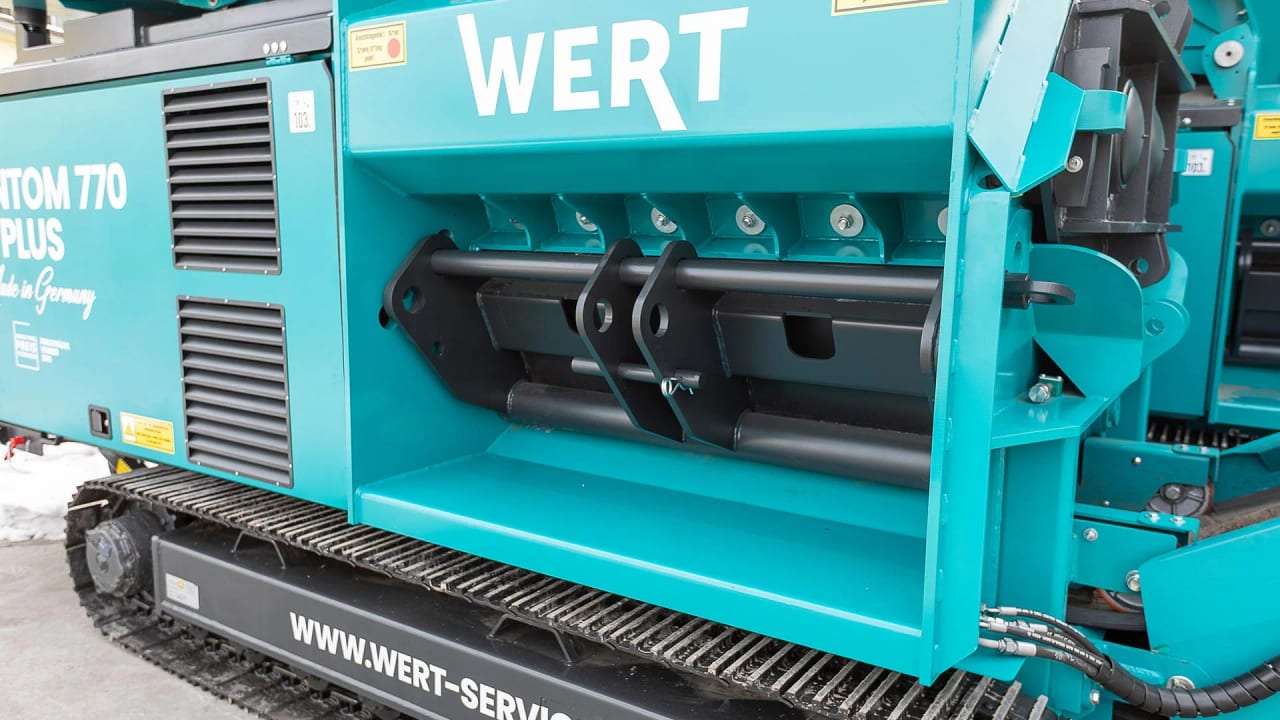

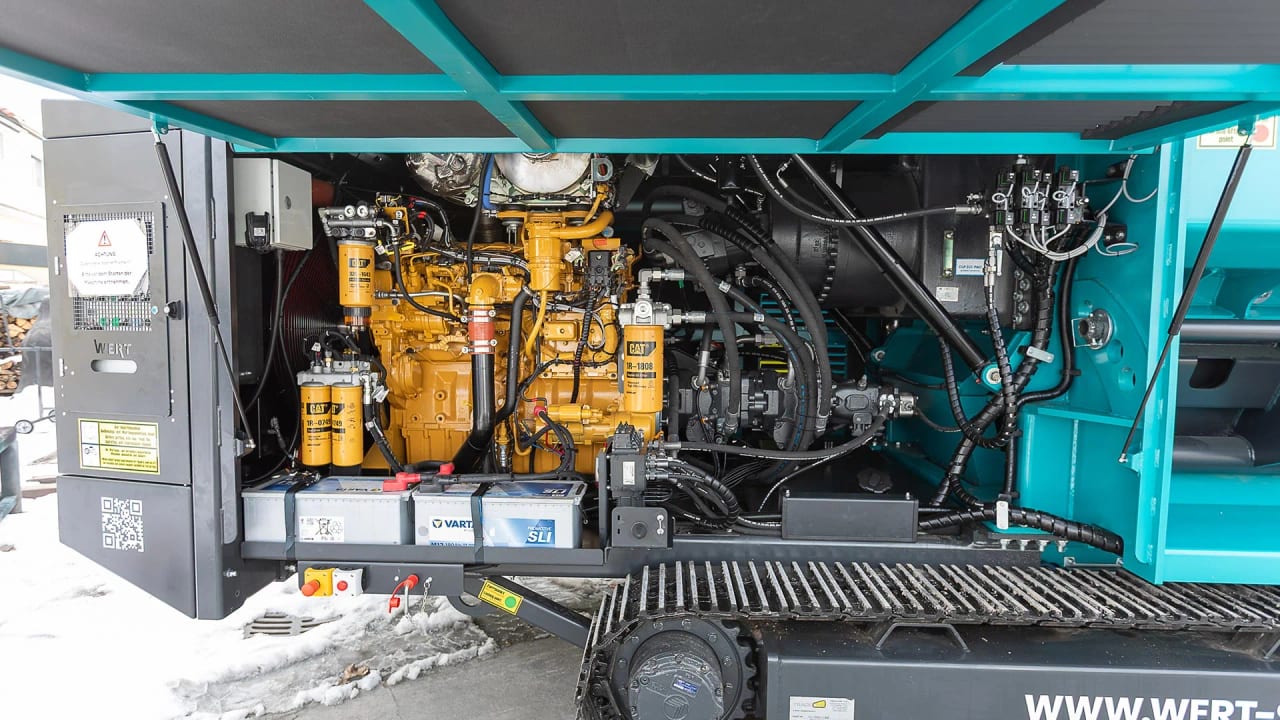

Machine, chamber, controls and conveyor.
Open any image for a larger technical view.
PHANTOM IN ACTION
Watch the machine work.
Official WERT-channel footage loads only when you choose to play it.
OFFICIAL WERT VIDEO
PHANTOM: 2025 innovation-award nomination
Accessible video summary: Official WERT Recycling Technik film introducing the PHANTOM platform and its innovation-award case.
Caption status: availability has not been independently verified. The player requests English captions when the publisher provides them.
Transcript status: no reviewed transcript is currently published. The written summary above provides a concise alternative; contact WERT UK for help with the technical content.
Playing the video connects your browser to YouTube’s privacy-enhanced player.
OFFICIAL WERT VIDEO
Asphalt recycling with the WERT PHANTOM
Accessible video summary: Official WERT footage of the PHANTOM working in an asphalt-recycling application.
Caption status: availability has not been independently verified. The player requests English captions when the publisher provides them.
Transcript status: no reviewed transcript is currently published. The written summary above provides a concise alternative; contact WERT UK for help with the technical content.
Playing the video connects your browser to YouTube’s privacy-enhanced player.
OFFICIAL WERT VIDEO
Construction and demolition recycling
Accessible video summary: Official WERT-channel footage showing the PHANTOM in a construction-material process.
Caption status: availability has not been independently verified. The player requests English captions when the publisher provides them.
Transcript status: no reviewed transcript is currently published. The written summary above provides a concise alternative; contact WERT UK for help with the technical content.
Playing the video connects your browser to YouTube’s privacy-enhanced player.
DOWNLOADS
Work from the current documents.
English · PDF
PHANTOM 770 brochure 2026
Download documentMay 2026 · Multilingual PDF
PHANTOM 770 technical data
Download documentEnglish · PDF
PHANTOM 770 Standard
Download documentEnglish · PDF
PHANTOM 770 Plus
Download documentEnglish · PDF
PHANTOM 770 Hyperion
Download document
English / German · PDF
WERT tooling specialist
Download documentEnglish / German · PDF
WERT shaft comparison
Download documentFREQUENTLY ASKED
The questions buyers ask first.
01What makes the PHANTOM 770 different?+
Its operating proposition is built around interchangeable shafts, configurable counter and screen systems, reversible hammer tooling and three drive configurations on one mobile platform.
02How fast is the shaft change?+
WERT promotes a rapid shaft-change system. This site does not state an unverified time or repeat the fastest-on-market wording as independent fact.
03Can it produce a guaranteed output size?+
No output is guaranteed from a web specification. Material, shaft geometry, screen, recirculation, feed and operating conditions all affect the result.
04Is diesel or electric drive available?+
Standard and Plus use CAT diesel engines. Hyperion uses a 250 kW electric primary drive and an 18.4 kW HATZ diesel travel system.
05How do I choose a model?+
Start with material, duty cycle, site power, transport and the required downstream process. A representative trial should inform the final quotation.
Specifications and equipment may change as part of continued product development. Images may show optional equipment. Performance figures are manufacturer-stated averages and may vary according to material, machine configuration, shaft selection, screen settings, feed method and operating conditions. Final specifications will be confirmed in the formal quotation.
